Textile
& Multi-Utility Cleaning Spray Guns. |
|
Our Textile & Multi-Utility
Cleaning Spray Guns, also commonly known as Spot Cleaning
Guns, have been developed for spot removal of dirt, oil strains
and other spots from textile fabrics and garments, mainly
at the manufacturing stage. Solvents are sprayed at high pressure
and velocity at the dirt spots, helping to shoot the dirt
out from the fabric, thereby, removing the stains without
damaging the fabric. The spray velocity can be adjusted by
the user, making it highly versatile in usage, as different
fabrics require different level of pressure to enable them
to be cleaned without any damage. The spray gun works with
electricity and consume negligible power. No separate air
compressor is required. The `CE’ mark on our products
certifies high quality standards and European acceptance.
We produce them under our most popular internationally recognised
brands ARROW and WONDER. |
|
|
|
Areas Of Use |
|
Though our spot cleaning
guns are primarily meant for usage in the textile industry,
the versatility of the unit allows for a wider spectrum of

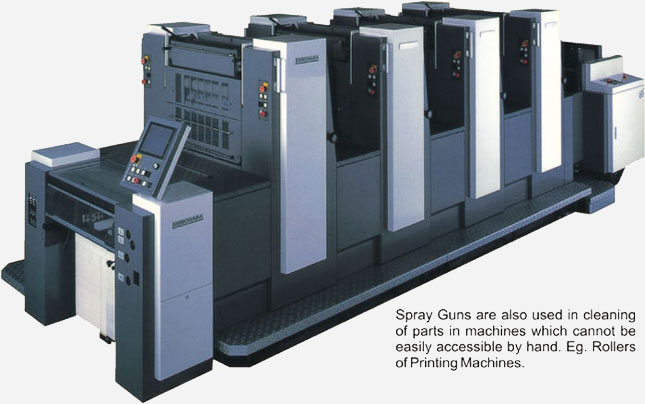

usage. The product can be used in other areas like the printing
industry for cleaning of typesets and rollers, electronic
industry for cleaning of PCB’s, manufacturing industries
for cleaning areas of machines which are not easily accessible
manually, electrical industry for contact cleaning (offline),
hair wig industry for cleaning of hair bases, for spraying
pesticides on plants, cleaning of rocks & articles, for
purpose of wood treatment, cleaning of precious & semi-precious
stones, etc. |
|
|
|

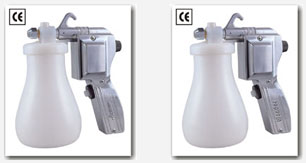

Arrow CM-11 / Wonder
TS-11 |
|
|
|
This spray gun is designed in highly buffed
Aluminium Alloy housing for rugged usage. This unit has a weight
of about 1.5kgs. The pressure of the spray in the unit is adjustable.
This comes with a straight spray nozzle, which delivers a straight-line
spray, which makes it more ideal for thick and medium woven
fabrics where the spray velocity required is on the higher side. |
|
|
|

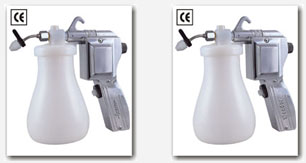

Arrow CM-11A /
Wonder TS-11 A |
|
|
|
This spray gun is designed in highly buffed
aluminium alloy housing for rugged usage. Its weight about 1.5kgs
and the pressure of the spray is adjustable. Further, this is
fitted with the adjustable nozzle, thereby giving the user a
twin adjustment of the spray pressure and velocity, one on the
spray gun itself and other on the nozzle. This gives the gun
a much finer control of the spray pressure and velocity, making
it suitable for all types of fabric from delicate and fine fabrics
to thick and closely woven fabric. The pressure adjustment on
the nozzle is done in a step-less movement also allowing the
user to control the solvent outflow and area of spray. |
|
|
|

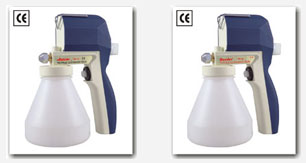

Arrow CM-16 / Wonder
TS-16 |
|
|
|
This spray gun is designed in Glass Filled
Nylon Plastic Body, with attractive body color, weighing about
1.2kgs. The pressure of the spray is adjustable. The construction
is lightweight but highly resistant to impact and heat. This
comes with a straight spray nozzle, which delivers a straight-line
spray, making it more ideal for use on thick and medium woven
fabrics where the spray velocity required is on the higher side. |
|
|
|
Arrow CM-16A / Wonder
TS-16A |
|
|
|
This spray gun is designed in Glass Filled
Nylon Plastic Body, with attractive body color, weighing about
1.2kgs. The pressure of the spray is adjustable. Further, this
is fitted with the adjustable nozzle, thereby giving the use
a twin adjustment of the spray pressure and velocity, one on
the spray gun itself and the other on the nozzle. This gives
the gun a much finer control of the spray pressure and velocity,
making it suitable for all types of fabrics from delicate and
fine fabrics to thick and closely woven fabrics. The pressure
adjustment on the nozzle is done in a step-less movement also
allowing the user to control the solvent outflow and area of
spray. |
|
|
|
Few Examples Of Use |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
